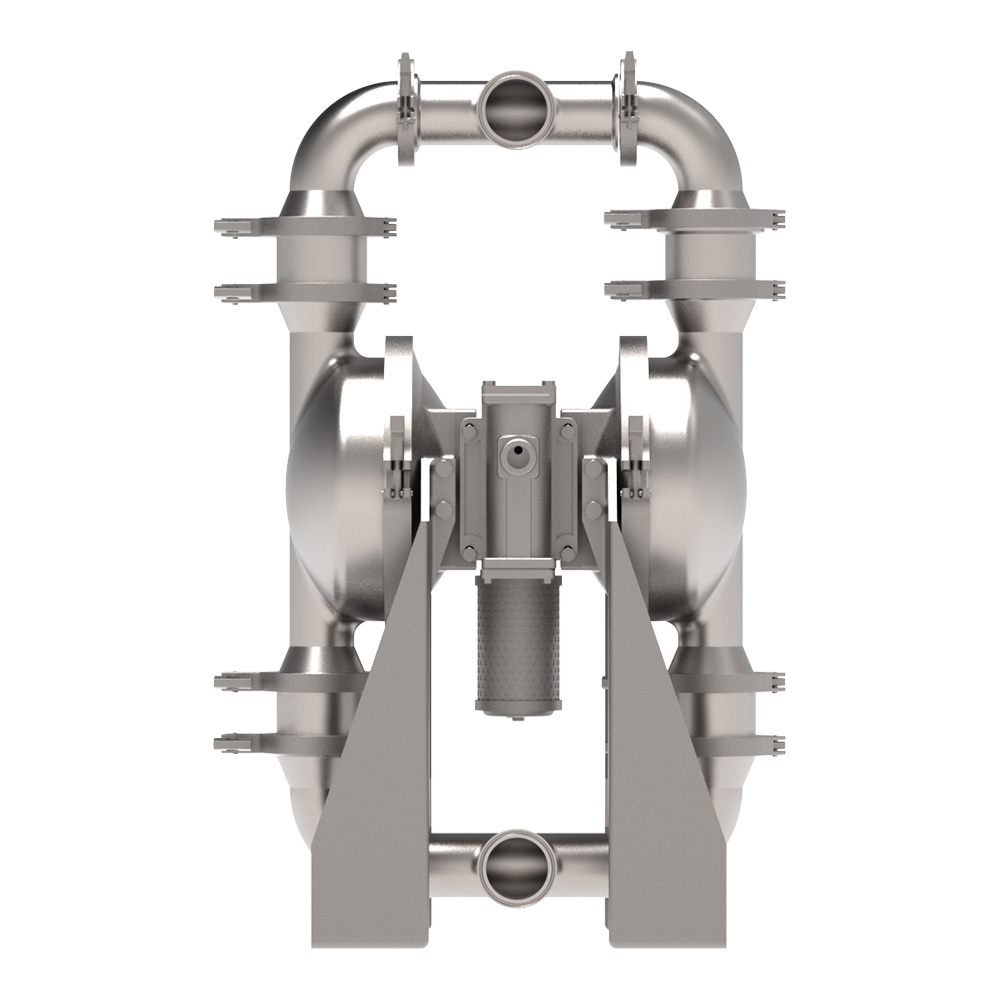

SF50 2"(51MM) FDA Pump

SURFACE ROUGHNESS 0.8 MAX FLOW RATE 500lpm(132gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 2.5"Clamp SMS MAX DIAMETER SOLIDS 9mm(0.375") LIQUID DISCHARGE 2.5"Clamp SMS DISPLACEMENT PER STROKE 2.6L(0.7gal)*1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 62KG MAX SUCTION LIFT CAPABILITY 6 m(20')Dry, 9.2m(30')Wet MAX OPERATING TEMPERATURE 135℃（279℉）

Hot Tags : FDA Pump 2 Inch FDA Pump Air Operated Double Diaphragm Pump
Read More
F40 1-1/2"(38MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 340.7lpm(90gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 2"Clamp SMS MAX DIAMETER SOLIDS 8mm(0.315") LIQUID DISCHARGE 2"Clamp SMS DISPLACEMENT PER STROKE 1.1L(0.29gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 55KG MAX SUCTION LIFT CAPABILITY 5.8m(19')Dry, 9.2m(29.5')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : Hygienic Pump 1-1/2 Inch Hygienic Pump
Read More

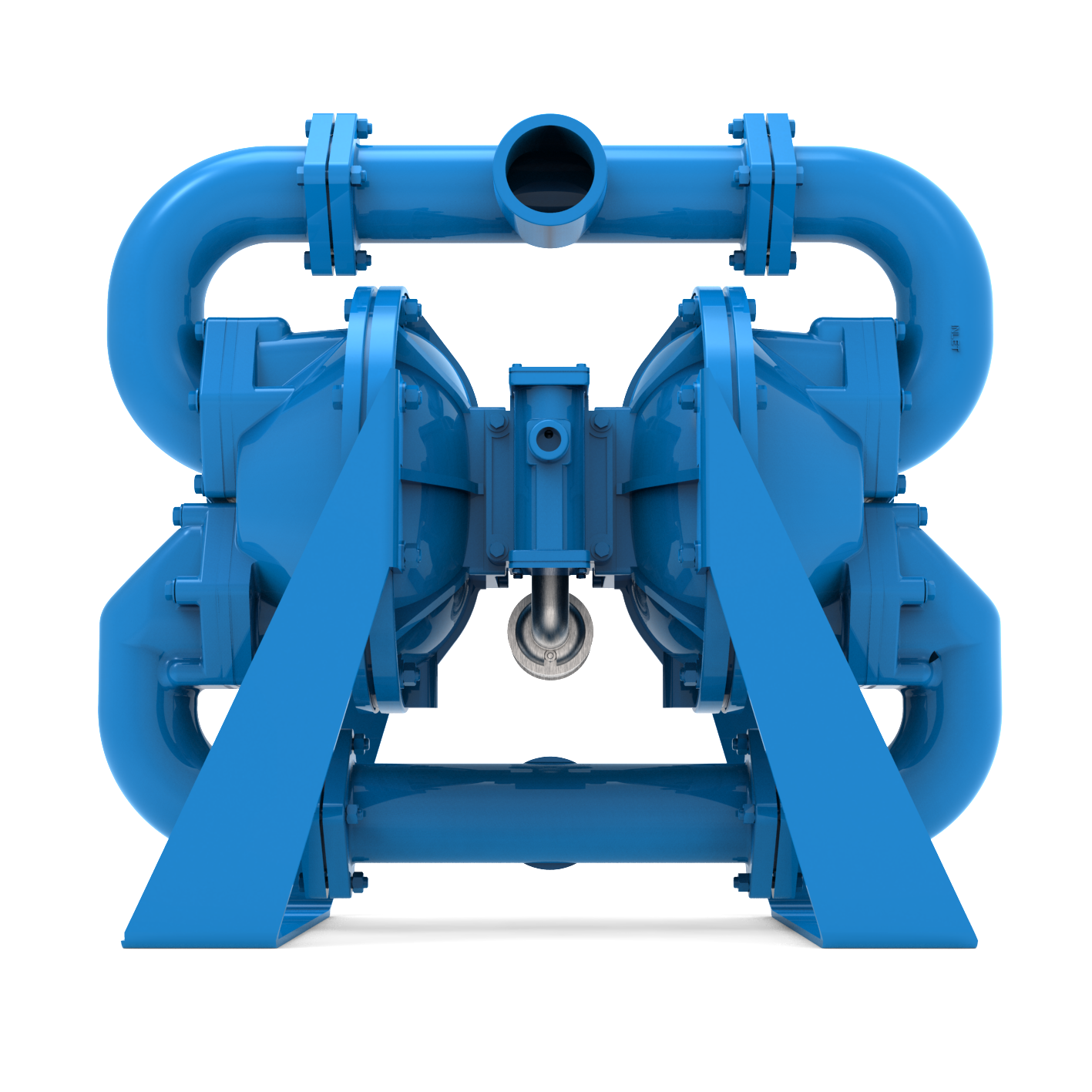

W50 2"(51MM) Sewage Pump

AIR INLET 3/4" BSPT MAX FLOW RATE 511 lpm (135 gpm) LIQUID INLET 51 mm (2") MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 51 mm (2") MAX DIAMETER SOLIDS 9 mm (3/8") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.63 L (0.43 gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 6m(20')Dry, 9.2m(30')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135 °C (275 °F) WEIGHT 43KG(AL)/73KG(CI/316L)

Hot Tags : Sewage Pump 2 Inch Sewage Pump
Read More
AS80 3"(76MM) Flap Pump

AIR INLET 3/4"BSPT MAX FLOW RATE 988lpm(260gpm) LIQUID INLET 76mm（3"）BSPT MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 76mm（3"）BSPT MAX DIAMETER SOLIDS 50mm(2") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 3.62L(0.95gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 6m(20')Dry, 9.5m(30')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135℃（275℉） WEIGHT 75KG(AL)/138KG(CI/316L)

Hot Tags : Flap Pump 3 Inch Flap Pump
Read More
PS40 1-1/2"(38 MM) Plastic AODD Pump

AIR INLET 3/4"BSPT MAX FLOW RATE 340lpm(90gpm) LIQUID INLET 38mm(1-1/2")FLANGE MAX PRESSURE 6.9bar(100psi) LIQUID DISCHARGE 38mm(1-1/2")FLANGE MAX DIAMETER SOLIDS 6.3mm(0.25") CONNECTION TYPE ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.29L(0.34gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 3.5m(12')Dry,9.2m(30')Wet MATERIAL PP/PVDF/PPH MAX OPERATING TEMPERATURE PP(80℃)PVDF(95℃) WEIGHT 34KG（PP)/45KG(PVDF)

Hot Tags : 1-1/2 Inch Plastic AODD Pump Plastic AODD Pump
Read More
SK40 1-1/2" (38 MM) Metal AODD Pump

AIR INLET 3/4" BSPT MAX FLOW RATE 340.7lpm(90gpm) LIQUID INLET 38mm(1-1/2")BSPT MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 38mm(1-1/2")BSPT MAX DIAMETER SOLIDS 6.3mm(1/4") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.29L(0.34gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 5.8m(19')Dry,9.2m(29.5')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135℃（275℉） WEIGHT 36KG(AL)/56KG(CI/316L)

Hot Tags : 1-1/2 Inch Metal AODD Pump Metal AODD Pump
Read More

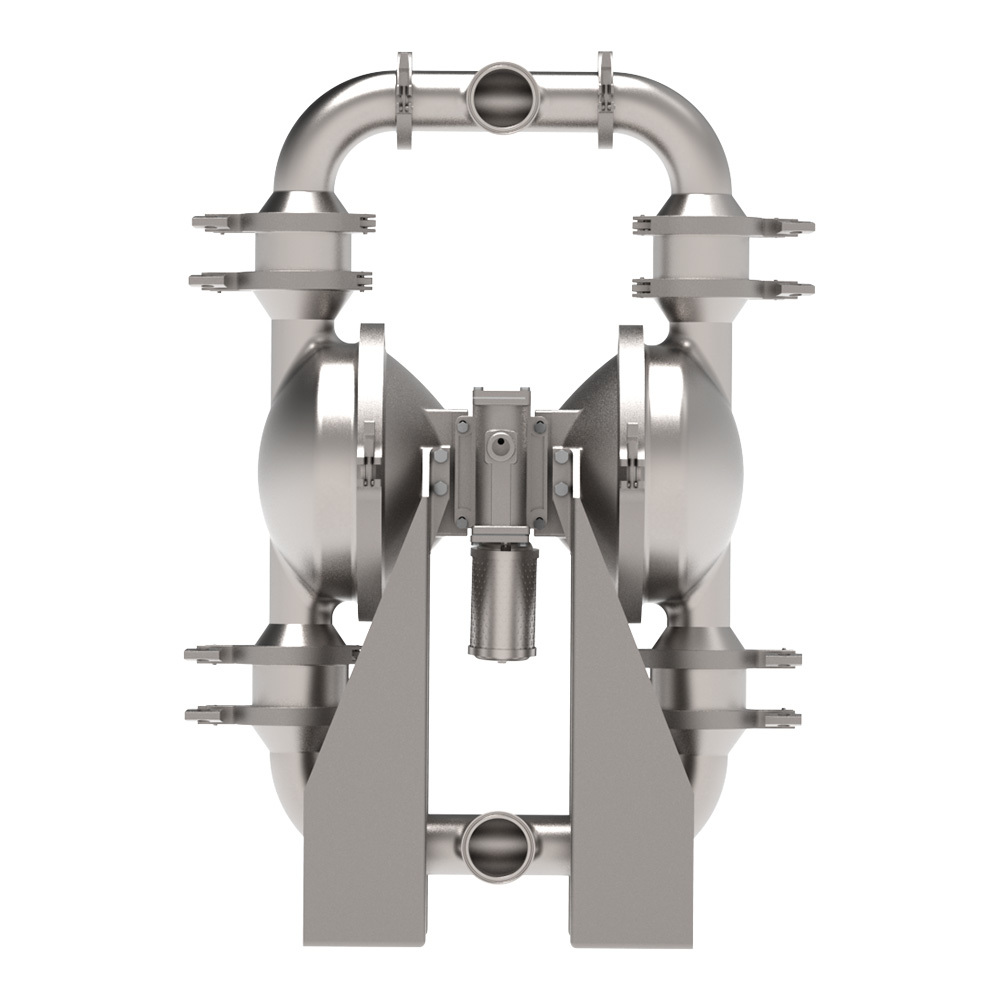

SF80 3"(76MM) FDA Pump

SURFACE ROUGHNESS 0.8 MAX FLOW RATE 988lpm(260gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 3"Clamp SMS MAX DIAMETER SOLIDS 15mm(0.6") LIQUID DISCHARGE 3"Clamp SMS DISPLACEMENT PER STROKE 5.15L(1.32gal)*1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 105KG MAX SUCTION LIFT CAPABILITY 7 m(23')Dry, 9.5m(30')Wet MAX OPERATING TEMPERATURE 135℃（279℉）

Hot Tags : 3 Inch FDA Pump
Read More
F50 2"(51MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 500lpm(132gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 2.5"Clamp SMS MAX DIAMETER SOLIDS 9mm(0.375") LIQUID DISCHARGE 2.5"Clamp SMS DISPLACEMENT PER STROKE 2.6L(0.7gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 67KG MAX SUCTION LIFT CAPABILITY 6 m(20')Dry, 9.2m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 2 Inch Hygienic Pump
Read More
