Plastic AODD Pump | Suppliers,Manufacturers

PS15 1/2"(13 MM) Plastic AODD Pump

AIR INLET 1/4"BSPT MAX FLOW RATE 52lpm(13.5gpm) LIQUID INLET 13mm（1/2"）BSPT MAX PRESSURE 6.9bar(100psi) LIQUID DISCHARGE 13mm（1/2"）BSPT MAX DIAMETER SOLIDS 3mm(0.118") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 0.15L(0.04gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 3.5m(12')Dry,9.2m(30')Wet MATERIAL PP/PVDF/PPH MAX OPERATING TEMPERATURE PP(80℃)PVDF(95℃) WEIGHT 5.5KG（PP)/7.2KG(PVDF)

Hot Tags : 1/2 Inch Plastic AODD Pump Air Operated Double Diaphragm Pump Plastic AODD Pump
Read More
PS25 1"(25 MM) Plastic AODD Pump

AIR INLET 1/2"BSPT MAX FLOW RATE 158lpm(42gpm) LIQUID INLET 25mm（1"）FLANGE MAX PRESSURE 6.9bar(100psi) LIQUID DISCHARGE 25mm（1"）FLANGE MAX DIAMETER SOLIDS 6mm(0.25") CONNECTION TYPE ANSI DIN(Flanged) DISPLACEMENT PER STROKE 0.42L(0.11gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 3.5m(12')Dry,9.2m(30')Wet MATERIAL PP/PVDF/PPH MAX OPERATING TEMPERATURE PP(80℃)PVDF(95℃) WEIGHT 12KG（PP)/16KG(PVDF)

Hot Tags : 1 Inch Plastic AODD Pump
Read More
PS40 1-1/2"(38 MM) Plastic AODD Pump

AIR INLET 3/4"BSPT MAX FLOW RATE 340lpm(90gpm) LIQUID INLET 38mm(1-1/2")FLANGE MAX PRESSURE 6.9bar(100psi) LIQUID DISCHARGE 38mm(1-1/2")FLANGE MAX DIAMETER SOLIDS 6.3mm(0.25") CONNECTION TYPE ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.29L(0.34gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 3.5m(12')Dry,9.2m(30')Wet MATERIAL PP/PVDF/PPH MAX OPERATING TEMPERATURE PP(80℃)PVDF(95℃) WEIGHT 34KG（PP)/45KG(PVDF)

Hot Tags : 1-1/2 Inch Plastic AODD Pump
Read More
PS50 2"(51 MM) Plastic AODD Pump

AIR INLET 3/4"BSPT MAX FLOW RATE 511lpm(135gpm) LIQUID INLET 51mm(2")FLANGE MAX PRESSURE 6.9bar(100psi) LIQUID DISCHARGE 51mm(2")FLANGE MAX DIAMETER SOLIDS 9mm(0.354") CONNECTION TYPE ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.63L(0.43gal)*1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 5m(16')Dry,9.2m(30')Wet MATERIAL PP/PVDF/PPH MAX OPERATING TEMPERATURE PP(80℃)PVDF(95℃) WEIGHT 41KG（PP)/56KG(PVDF)

Hot Tags : 2 Inch Plastic AODD Pump
Read More

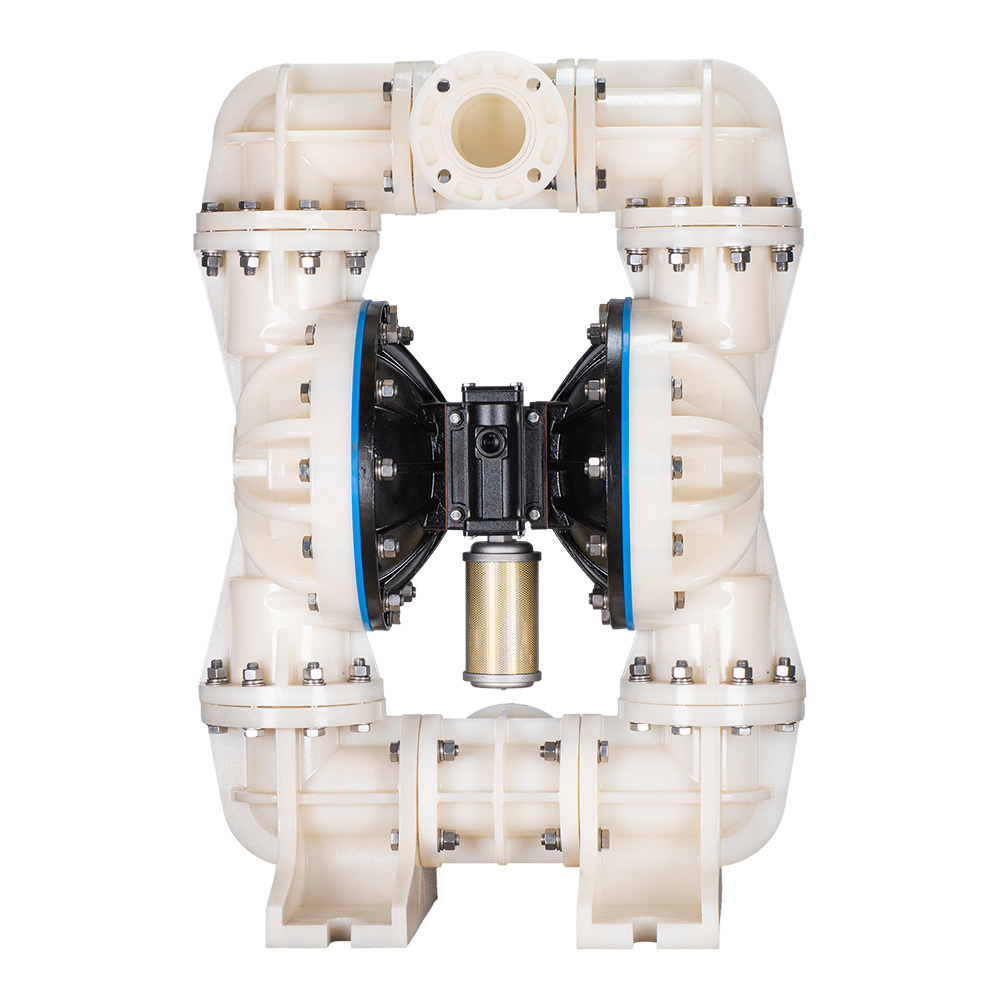

PS80 3"(76 MM) Plastic AODD Pump

AIR INLET RC 3/4" MAX FLOW RATE 988lpm(260gpm) LIQUID INLET 76mm(3")FLANGE MAX PRESSURE 6.9bar(100psi) LIQUID DISCHARGE 76mm(3")FLANGE MAX DIAMETER SOLIDS 15mm(0.6") CONNECTION TYPE ANSI DIN(Flanged) DISPLACEMENT PER STROKE 3.62L(0.95gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 5m(16')Dry,9.5m(30.4')Wet MATERIAL PP/PVDF/PPH MAX OPERATING TEMPERATURE PP(80℃)PVDF(95℃) WEIGHT 84KG（PP)/138KG(PVDF)

Hot Tags : 3 Inch Plastic AODD Pump
Read More
