Hygienic Pump | Suppliers,Manufacturers

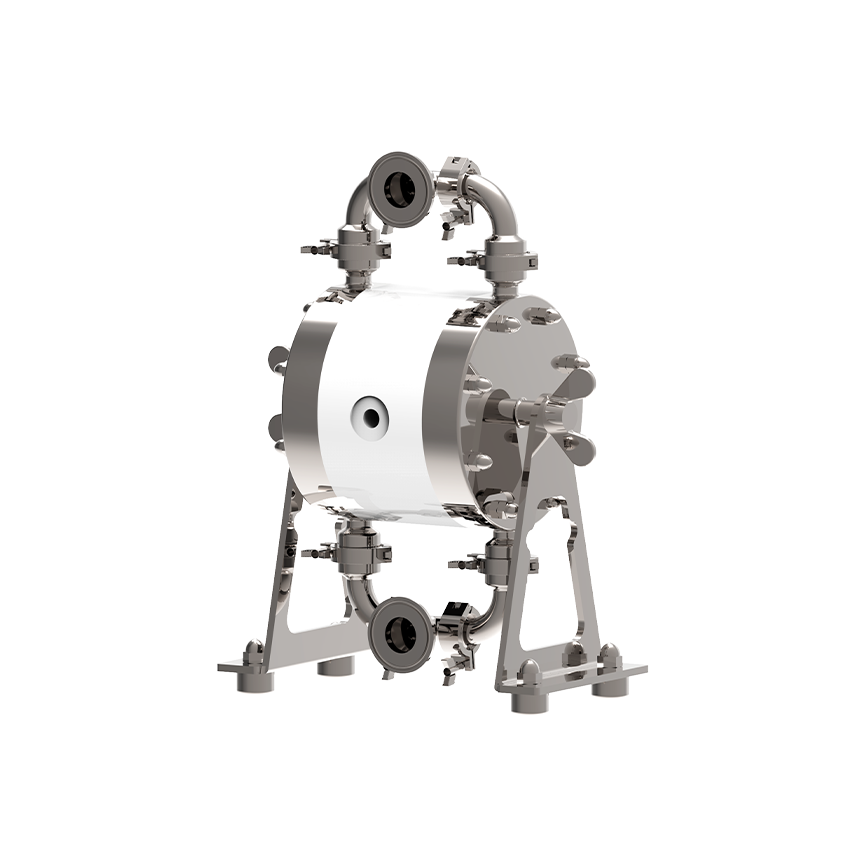

F20 1/2"(13MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 57lpm(15gpm) AIR INLET 1/2"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 1"Clamp SMS MAX DIAMETER SOLIDS 6mm(1/4") LIQUID DISCHARGE 1"Clamp SMS DISPLACEMENT PER STROKE 0.15L(0.04gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flange) TRI-Clamp MATERIAL 316L WEIGHT 11KG MAX SUCTION LIFT CAPABILITY 3m(13')Dry, 9m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : Hygienic Pump 1/2 Inch Hygienic Pump Air Operated Double Diaphragm Pump
Read More
F25 1"(25MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 150lpm(39gpm) AIR INLET 1/2"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 1"Clamp SMS MAX DIAMETER SOLIDS 6mm(1/4") LIQUID DISCHARGE 1"Clamp SMS DISPLACEMENT PER STROKE 0.3L(0.08gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 16KG MAX SUCTION LIFT CAPABILITY 4m(13')Dry, 9.2m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 1 Inch Hygienic Pump
Read More
F40 1-1/2"(38MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 340.7lpm(90gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 2"Clamp SMS MAX DIAMETER SOLIDS 8mm(0.315") LIQUID DISCHARGE 2"Clamp SMS DISPLACEMENT PER STROKE 1.1L(0.29gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 55KG MAX SUCTION LIFT CAPABILITY 5.8m(19')Dry, 9.2m(29.5')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 1-1/2 Inch Hygienic Pump
Read More
F50 2"(51MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 500lpm(132gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 2.5"Clamp SMS MAX DIAMETER SOLIDS 9mm(0.375") LIQUID DISCHARGE 2.5"Clamp SMS DISPLACEMENT PER STROKE 2.6L(0.7gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 67KG MAX SUCTION LIFT CAPABILITY 6 m(20')Dry, 9.2m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 2 Inch Hygienic Pump
Read More
F80 3"(76MM) Hygienic Pump

SURFACE ROUGHNESS 0.4/0.8 MAX FLOW RATE 988lpm(260gpm) AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 3"Clamp SMS MAX DIAMETER SOLIDS 15mm(0.6") LIQUID DISCHARGE 3"Clamp SMS DISPLACEMENT PER STROKE 5.15L(1.32gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) DIN ANSI JIS(Flanged) TRI-Clamp MATERIAL 316L WEIGHT 115KG MAX SUCTION LIFT CAPABILITY 7 m(23')Dry, 9.5m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 3 Inch Hygienic Pump
Read More
