PTFE Pump | Suppliers,Manufacturers

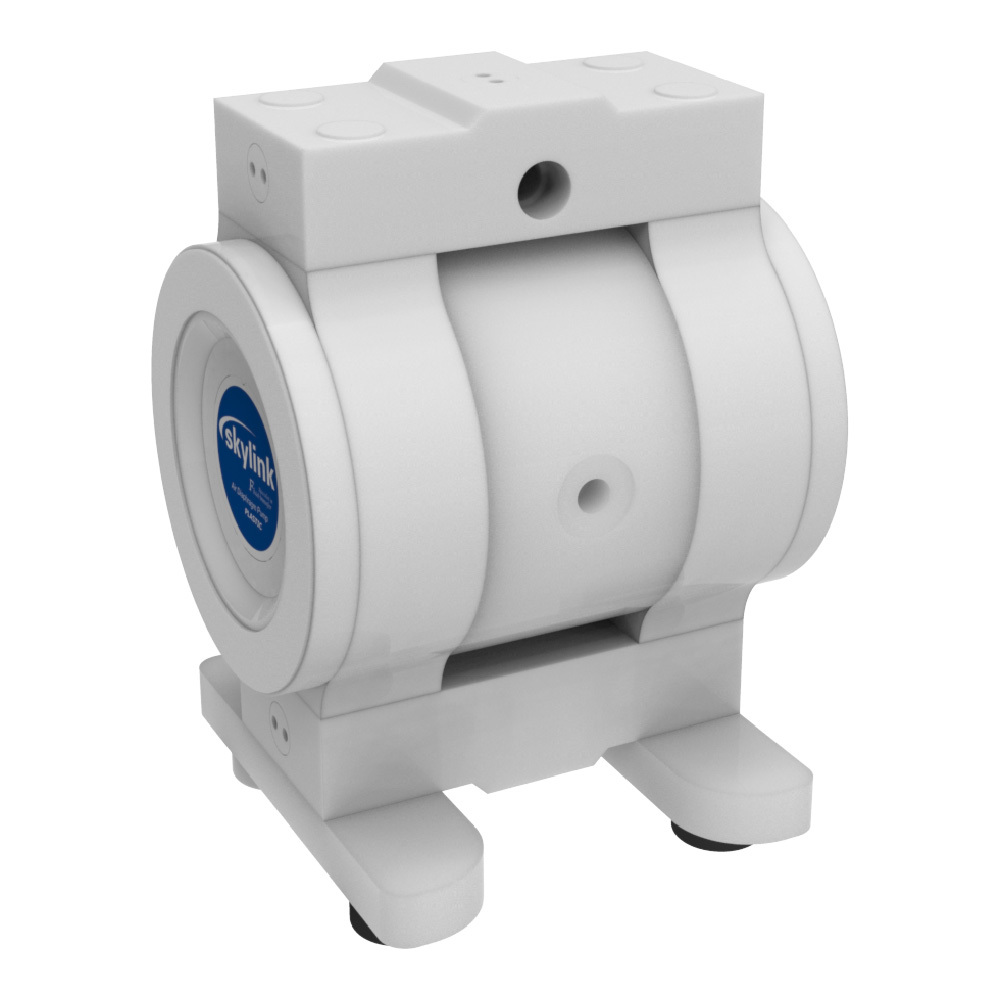

AD08 1/4"(6MM) PTFE Pump

AIR INLET 1/8" MAX FLOW RATE 13lpm(3.5gpm） LIQUID INLET 1/4" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1/4" BSPT MAX DIAMETER SOLIDS 3mm(0.12") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 0.08L(0.017gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 1.5m(5')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 2KG（UPE）/2.5KG（PTFE）

Hot Tags : PTFE Pump 1/4"Inch PTFE Pump High Purity PTFE Pump
Read More
AC08 1/4"(6MM) PTFE Pump

AIR INLET 1/8" MAX FLOW RATE 13lpm(3.5gpm） LIQUID INLET 1/4" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1/4" BSPT MAX DIAMETER SOLIDS 3mm(0.12") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 0.08L(0.017gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 1.5m(5')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 2KG（UPE）/2.5KG（PTFE）

Hot Tags :
Read More
AD15 1/2"(13MM) PTFE Pump

AIR INLET 1/4" MAX FLOW RATE 42lpm(11gpm） LIQUID INLET 1/2" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1/2" BSPT MAX DIAMETER SOLIDS 4mm(0.16") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 0.2L(0.043gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILTY 2m(8')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 5.4KG（UPE）/8.6KG（PTFE）

Hot Tags : 1/2" Inch PTFE Pump
Read More
AC15 1/2"(13MM) PTFE Pump

AIR INLET 1/4" MAX FLOW RATE 42lpm(11gpm） LIQUID INLET 1/2" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1/2" BSPT MAX DIAMETER SOLIDS 4mm(0.16") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 0.2L(0.043gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILTY 2m(8')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 5.4KG（UPE）/8.6KG（PTFE）

Hot Tags :
Read More
AD25 1"(25MM) PTFE Pump

AIR INLET 1/2" MAX FLOW RATE 117lpm(31gpm） LIQUID INLET 1" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1" BSPT MAX DIAMETER SOLIDS 6mm(1/4") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 0.6L(0.13gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 4m(13')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 12KG（UPE）/20KG（PTFE）

Hot Tags : 1 Inch PTFE Pump
Read More
AC25 1"(25MM) PTFE Pump

AIR INLET 1/2" MAX FLOW RATE 117lpm(31gpm） LIQUID INLET 1" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1" BSPT MAX DIAMETER SOLIDS 6mm(1/4") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 0.6L(0.13gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 4m(13')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 12KG（UPE）/20KG（PTFE）

Hot Tags :
Read More
AD40 1-1/2"(38MM) PTFE Pump

AIR INLET 3/4" MAX FLOW RATE 340lpm(90gpm） LIQUID INLET 1-1/2" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1-1/2" BSPT MAX DIAMETER SOLIDS 6mm(1/4") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 2.2L(0.48gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 4m(13')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 34KG（UPE）/50KG（PTFE）

Hot Tags : 1-1/2 Inch PTFE Pump
Read More
AC40 1-1/2"(38MM) PTFE Pump

AIR INLET 3/4" MAX FLOW RATE 340lpm(90gpm） LIQUID INLET 1-1/2" BSPT MAX PRESSURE 6.9bar（100psi） LIQUID DISCHARGE 1-1/2" BSPT MAX DIAMETER SOLIDS 6mm(1/4") CONNECTION TYPE BSPT/NPT(Threaded)ANSI/DIN/JIS(Flange) DISPLACEMENT PER STROKE 2.2L(0.48gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 4m(13')Dry, 9m(30')Wet MATERIAL UPE/PTFE MAX OPERATING TEMPERATURE PTFE 100℃（212℉） UPE 70℃ （158℉） WEIGHT 34KG（UPE）/50KG（PTFE）

Hot Tags : 1-1/2"Inch PTFE Pump
Read More
