W25 1"(25MM) Sewage Pump

AIR INLET 1/2"BSPT MAX FLOW RATE 170lpm(40gpm) LIQUID INLET 25mm（1"）BSPT MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 25mm（1"）BSPT MAX DIAMETER SOLIDS 6mm(1/4") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 0.42L(0.11gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 3.5m(12')Dry,9.2m(30')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135℃（275℉） WEIGHT 12KG(AL)/19KG(SS/CI)

Hot Tags : Sewage Pump 1 Inch Sewage Pump Air Operated Double Diaphragm Pump
Read More

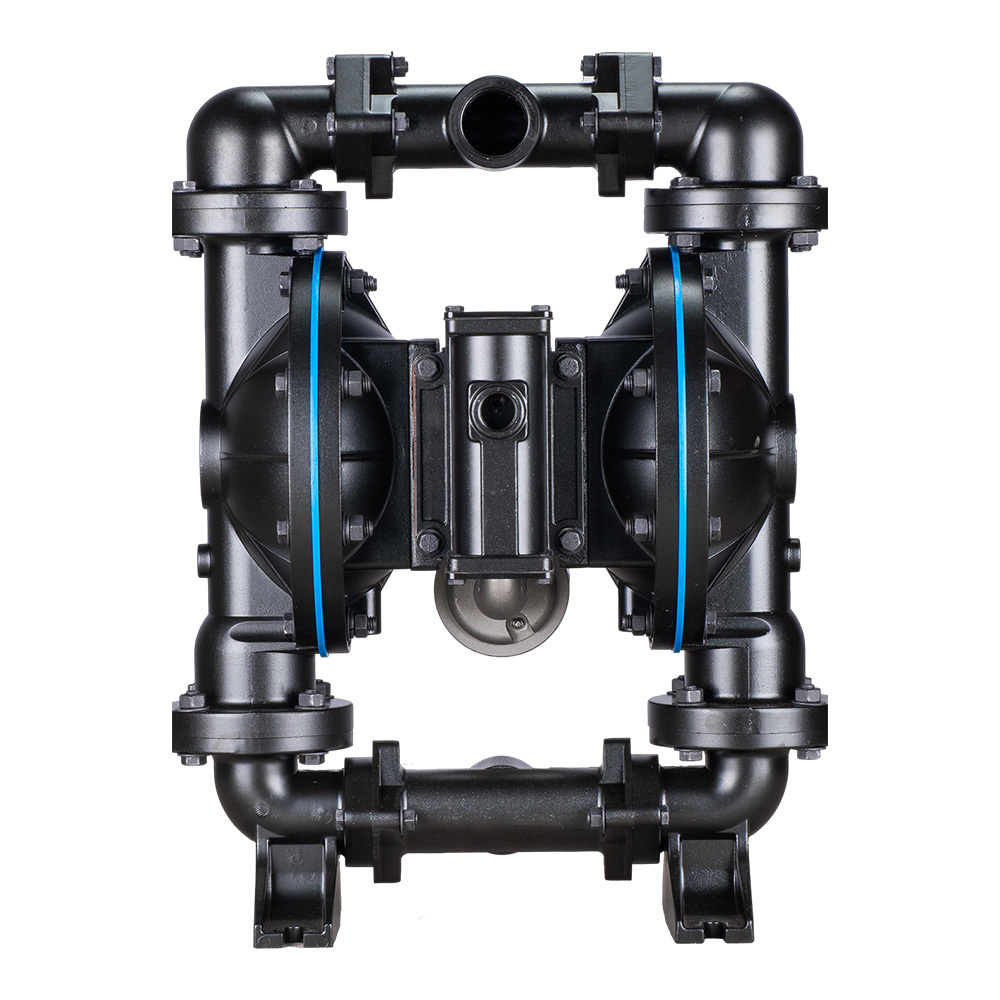

W40 1-1/2"(38MM) Sewage Pump

AIR INLET 3/4" BSPT MAX FLOW RATE 340.7lpm(90gpm) LIQUID INLET 38mm(1-1/2")BSPT MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 38mm(1-1/2")BSPT MAX DIAMETER SOLIDS 6.3mm(1/4") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.29L(0.34gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 5.8m(19')Dry,9.2m(29.5')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135℃（275℉） WEIGHT 36KG(AL)/56KG(CI/316L)

Hot Tags : 1-1/2 Inch Sewage Pump
Read More

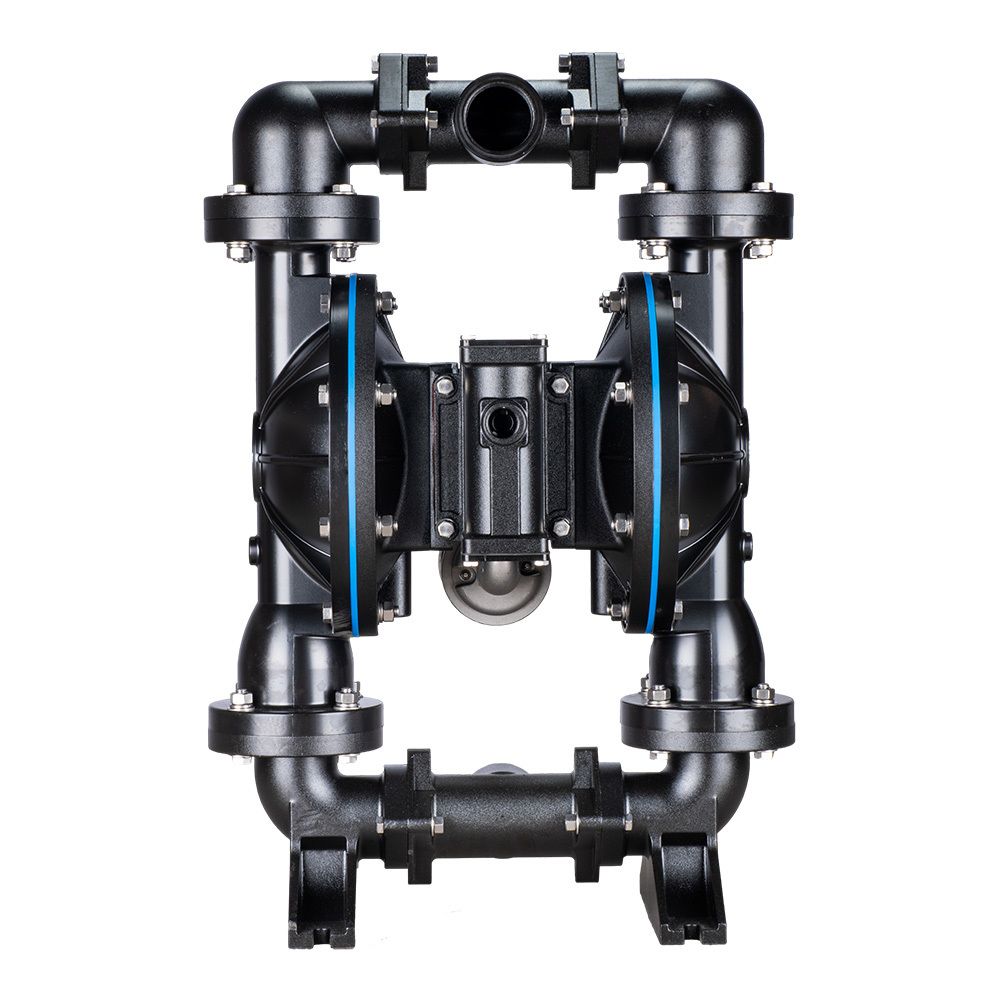

W50 2"(51MM) Sewage Pump

AIR INLET 3/4" BSPT MAX FLOW RATE 511 lpm (135 gpm) LIQUID INLET 51 mm (2") MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 51 mm (2") MAX DIAMETER SOLIDS 9 mm (3/8") CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) DISPLACEMENT PER STROKE 1.63 L (0.43 gal) *1 cycle = 2 strokes MAX SUCTION LIFT CAPABILITY 6m(20')Dry, 9.2m(30')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135 °C (275 °F) WEIGHT 43KG(AL)/73KG(CI/316L)

Hot Tags : 2 Inch Sewage Pump
Read More

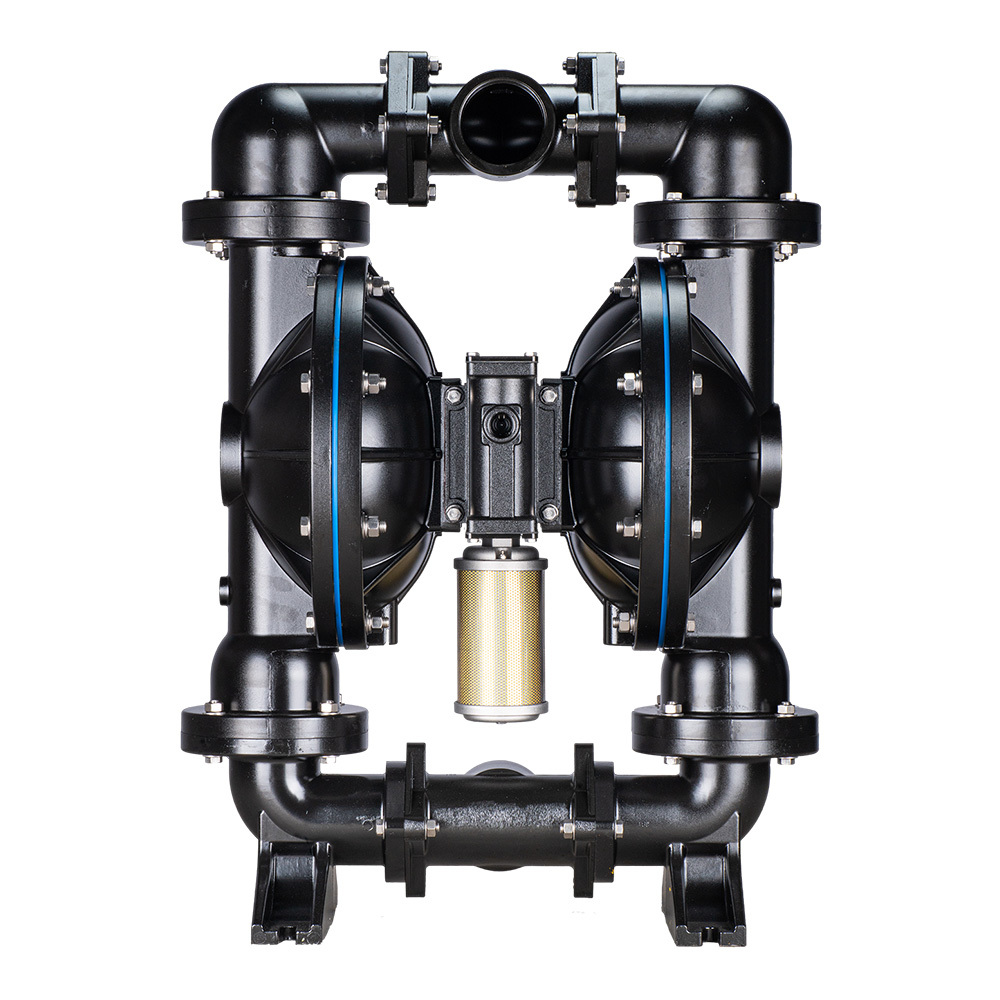

W80 3"(76MM) Sewage Pump

AIR INLET 3/4" BSPT MAX FLOW RATE 988lpm(260gpm) LIQUID INLET 76mm（3"）BSPT MAX PRESSURE 8.6 bar (125 psi) LIQUID DISCHARGE 76mm（3"）BSPT MAX DIAMETER SOLIDS 12mm(0.472") CONNECTION TYPE BSPT(Threaded) ANSI DIN (Flanged) DISPLACEMENT PER STROKE 3.62L(0.95gal) *1 cycle=2 strokes MAX SUCTION LIFT CAPABILITY 6m(20')Dry,9.5m(30')Wet MATERIAL AL/316L/CI MAX OPERATING TEMPERATURE 135 °C (275 °F) WEIGHT 75KG(AL)/138KG(CI/316L)

Hot Tags : 3 Inch Sewage Pump
Read More
