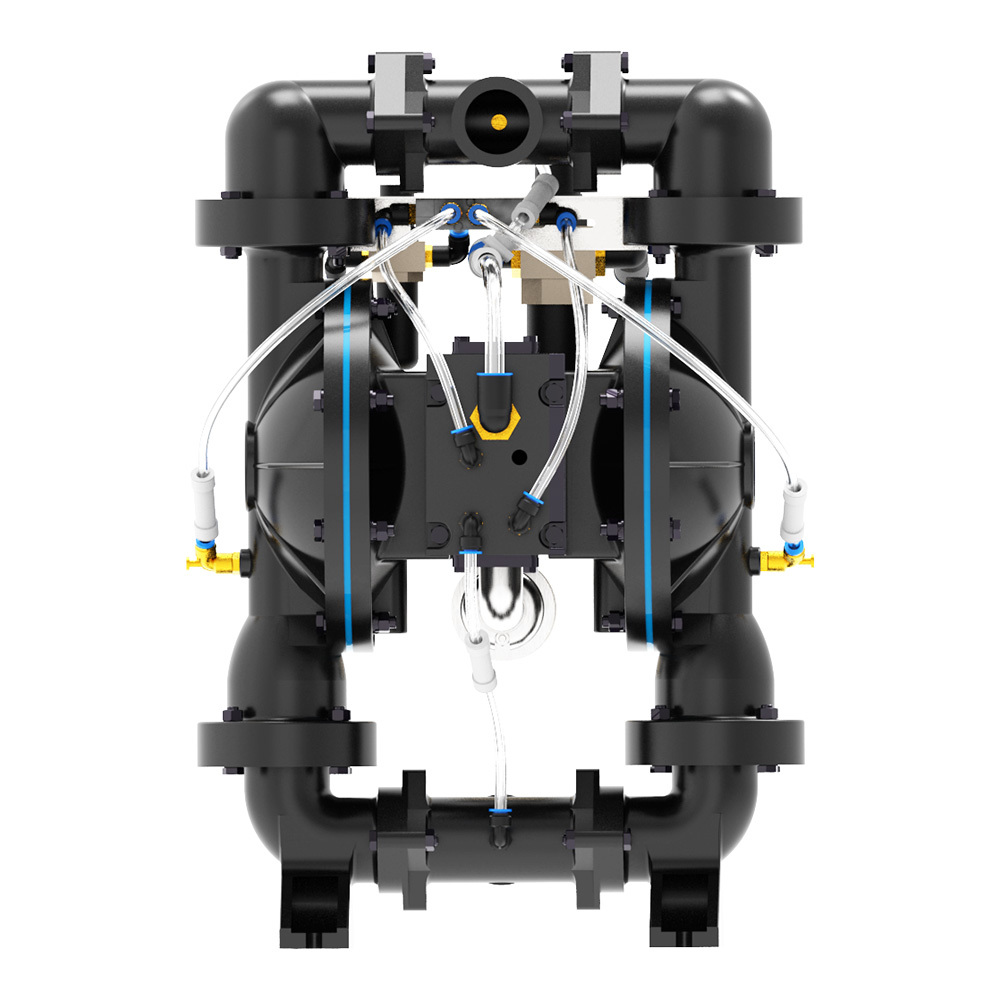

PDSK40 1-1/2"(38MM) Powder Transfer Pump

BULK DENSITY 0.08-0.8 g/cm³ MAX FLOW RATE 2500 Kg/h AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 38mm(1-1/2")BSPT MAX DIAMETER SOLIDS 6.3mm(1/4") LIQUID DISCHARGE 38mm(1-1/2")BSPT DISPLACEMENT PER STROKE 1.2L(0.34gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) MATERIAL AL/316L/CI WEIGHT 36kg(AL)/56(CI/316L) MAX SUCTION LIFT CAPABILITY 5.8m(19')Dry, 9.2m(29.5')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : Powder Transfer Pump 1-1/2 Inch Powder Transfer Pump Air Operated Double Diaphragm Pump
Read More
PDSK50 2"(51MM) Powder Transfer Pump

BULK DENSITY 0.08-0.8 g/cm³ MAX FLOW RATE 3500 Kg/h AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 51mm(2")BSPT MAX DIAMETER SOLIDS 9mm(3/8") LIQUID DISCHARGE 51mm(2")BSPT DISPLACEMENT PER STROKE 1.63L(0.43gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) MATERIAL AL/316L/CI WEIGHT 43kg(AL)/73(CI/316L) MAX SUCTION LIFT CAPABILITY 6m(20')Dry,9.2m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 2 Inch Powder Transfer Pump
Read More
PDSK80 3"(76MM) Powder Transfer Pump

BULK DENSITY 0.08-0.8 g/cm³ MAX FLOW RATE 5500 Kg/h AIR INLET 3/4"BSPT MAX PRESSURE 8.6bar （125psi） LIQUID INLET 76mm（3"）BSPT MAX DIAMETER SOLIDS 12mm(0.472") LIQUID DISCHARGE 76mm（3"）BSPT DISPLACEMENT PER STROKE 3.62L(0.95gal) *1 cycle = 2 strokes CONNECTION TYPE BSPT(Threaded) ANSI DIN(Flanged) MATERIAL AL/316L/CI WEIGHT 75kg(AL)/138(CI/316L) MAX SUCTION LIFT CAPABILITY 6m(20')Dry, 9.5m(30')Wet MAX OPERATING TEMPERATURE 135℃（275℉）

Hot Tags : 3 Inch Powder Transfer Pump
Read More
