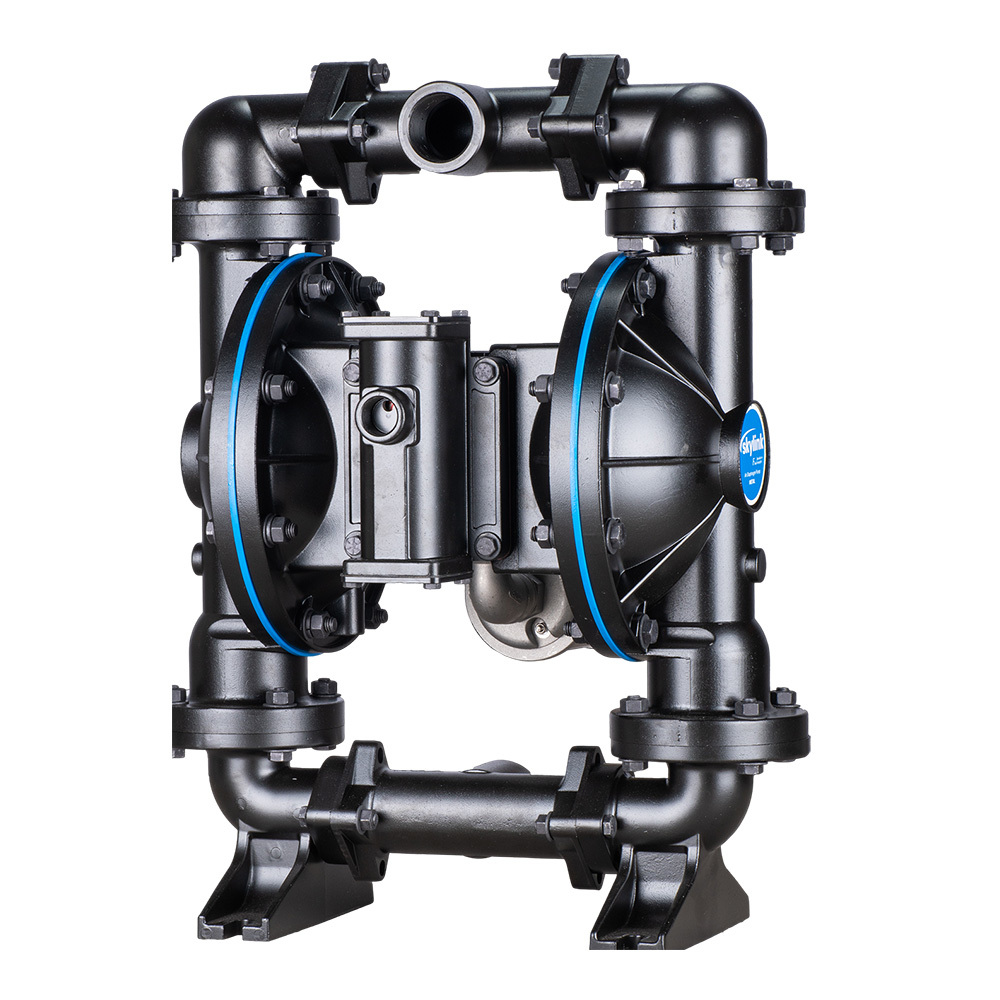

- Unbalanced spool design, no dead point, non-stop pumping, anti-ice, fast exhaust
- With multiple flow options up to 988 lpm
- Can transport large solid particles up to 12mm in diameter
- Wet absorption height up to 9m
- Inlet and outlet angle can be adjusted by 90 ° to adapt to various connection modes
- Bolt structure has good sealing performance, high reliability and easy disassembly
- Portable and can be used for diving
Characteristic
Flow passage components treated by electrophoresis are more wear-resistant and environmentally friendly
Dimensions
| MATERIALS | PART |
|---|---|
| Material of wetted parts | Aluminum alloy, 316L stainless steel |
| Material of non-wetted parts | Aluminum alloy(electrophoresis) |
| Air valve | Center body (aluminum alloy(electrophoresis),anodized aluminum, PP polypropylene, 316L stainless steel) |
| MATERIALS | PART |
|---|---|
| Santoprene | -40°C to 107°C (-40°F to 225°F) |
| Neoprene | -18°C to 93°C (0°F to 200°F) |
| Polytetrafluoroethylene (PTFE) | 4°C to 104°C (40°F to 220°F) |
| Nitrile rubber (Buna-N) | -12°C to 82°C (10°F to 180°F) |
| EPDM | -51°C to 138°C (-60°F to 280°F) |
| Fluorine rubber (FKM) | -40°C to 177°C (-40°F to 350°F) |
Accessories
