- Unbalanced valve core design, non-stop pumping, no dead spots, anti-icing and quick exhaust

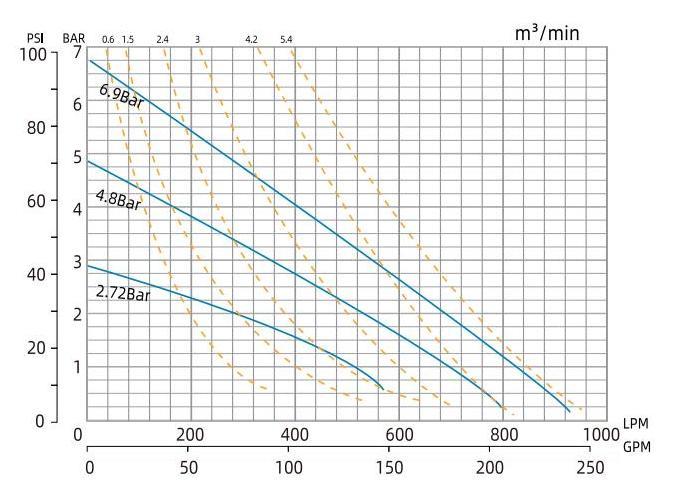

- A variety of flow options, up to 900 lpm
- Transport of large solid particles up to 12mm
- Self-priming height up to 9m
- The angle of the inlet and outlet is adjusted by 90° to adapt to various connection methods
- Bolt structure, enhanced sealing and reliability, easy to assemble and disassemble
- Portable and capable of diving applications
Characteristic
Conveying acidic/alkaline corrosive fluids
Dimensions
| MATERIALS | PART |
|---|---|
| Material of wetted parts | PP polypropylene,PVDF polyvinylidene fluoride, PPH modified polypropylene, conductive PP polypropylene, conductive PVDF polyvinylidene fluoride |
| Material of non-wetted parts | Aluminum alloy(electrophoresis) |
| Air valve | Aluminum alloy(electrophoresis) |
| MATERIALS | PART |
|---|---|
| Santoprene | -40°C to 107°C (-40°F to 225°F) |
| Polytetrafluoroethylene (PTFE) | 4°C to 104°C (40°F to 220°F) |
| Fluorine rubber (FKM) | -40°C to 177°C (-40°F to 350°F) |
Accessories
