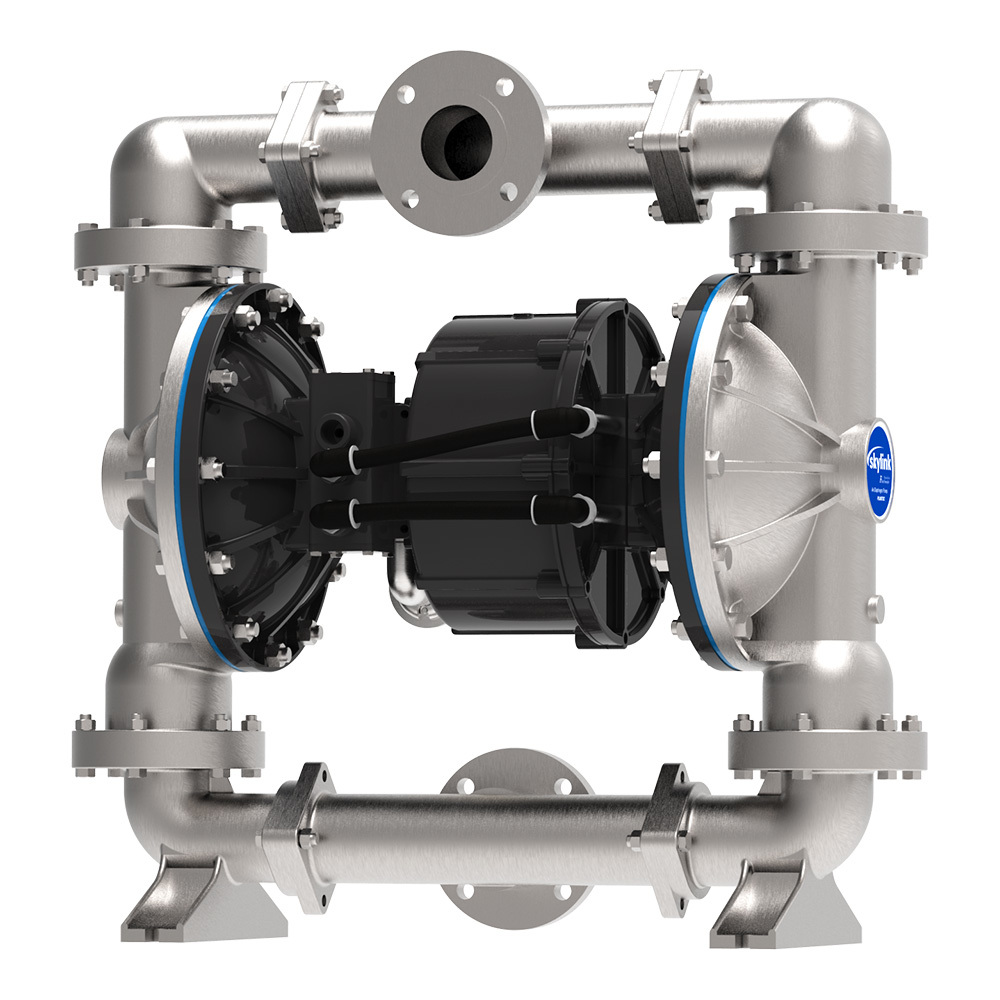

- SKYLINK HK series high pressure pneumatic diaphragm pump maximum pressure: 14bar (203psi), maximum flow 494lpm(131gpm); SKYLINK H series high pressure pneumatic diaphragm pump maximum pressure: 14bar (203psi), maximum flow :790lpm(209gpm)
- The material can be cast iron, stainless steel and polyvinylidene fluoride (PVDF), which is suitable for high pressure transportation of different materials
- Can transport high viscosity, high solid content medium with longer distance
- Bolt structure can ensure the firmness during high pressure transportation, prevent leakage and reduce the maintenance cost
- Application: pressure filter supporting; ceramic slurry; high lift or long distance transportation; chemical sludge transportation and general industrial applications
Characteristic
Double pressure and flow up to 90% of conventional pump
Dimensions
| MATERIALS | PART |
|---|---|
| Material of wetted parts | Cast iron, 316L stainless steel |
| Material of non-wetted parts | Center body (aluminum alloy(electrophoresis),anodized aluminum, PP polypropylene, 316L stainless steel) |
| Air valve | Aluminum alloy(electrophoresis),anodized aluminum, PP polypropylene, 316L stainless steel |
| MATERIALS | PART |
|---|---|
| Santoprene | -40°C to 107°C (-40°F to 225°F) |
| Neoprene | -18°C to 93°C (0°F to 200°F) |
| Polytetrafluoroethylene (PTFE) | 4°C to 104°C (40°F to 220°F) |
| Nitrile rubber (Buna-N) | -12°C to 82°C (10°F to 180°F) |
| EPDM | -51°C to 138°C (-60°F to 280°F) |
| Fluorine rubber (FKM) | -40°C to 177°C (-40°F to 350°F) |
Accessories
