Home Bellows Pump BFA Series

3/4" Bellows Pump With Fiber-Optic Control

3/4
3/4

3/4" Bellows Pump With Fiber-Optic Control

LIQUID INLET 20mm(3/4")
LIQUID DISCHARGE 20mm(3/4")
MAX DIAMETER SOLIDS 3mm(0.12")
MAX FLOW RATE 25.8lpm(6.8gpm)
CONNECTION TYPE BSPT/NPT(Thread)
ANSI/DIN/JIS(Flange)
MAX SUCTION LIFT CAPABILITY 5m(16')Dry
9m(30')Wet
MAX PRESSURE 6.9bar(100psi)
WEIGHT 7.6kg
Inquiry now
Related Product

Email:asst.marketing@skylink-tec.com

Phone:400-8919-365



    Characteristic

    • Fiber optic sensor to control stroke length
    • Class 100 cleanroom assembly and  testing
    • Stable performance, meeting different application requirements
    • Easy to install and service
    • Safe, leak-free operation due to no-metal design
    • Applicable to any high-purity or corrosive environment



Download

Download
Videos

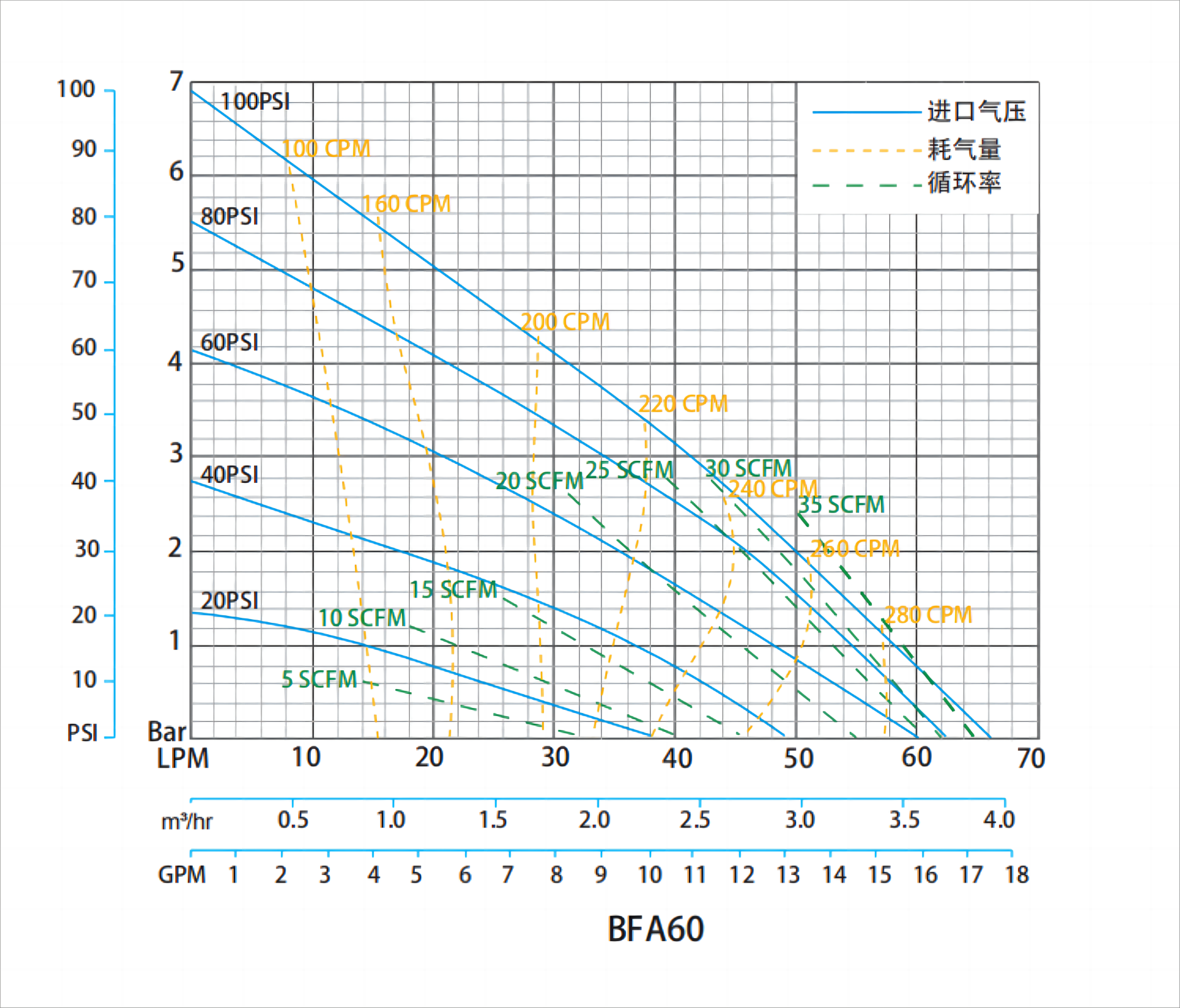

Graph

Dimensions

Accessories
