1/2" Bellows Pump With On-Board Shuttle Valve

1/2
1/2

1/2" Bellows Pump With On-Board Shuttle Valve

LIQUID INLET 13mm(1/2")
LIQUID DISCHARGE 13mm(1/2")
MAX DIAMETER SOLIDS 1.5mm(0.06")
MAX FLOW RATE 13.6lpm(3.6gpm)
CONNECTION TYPE BSPT/NPT(Thread)
ANSI/DIN/JIS(Flange)
MAX SUCTION LIFT CAPABILITY 5m(16')Dry
9m(30')Wet
MAX PRESSURE 6.9bar(100psi)
WEIGHT 4.4kg
Inquiry now
Related Product

Email:asst.marketing@skylink-tec.com

Phone:400-8919-365



    Characteristic

    • Fiber optic sensor to control stroke length
    • Class 100 cleanroom assembly and  testing
    • Stable performance, meeting different application requirements
    • Easy to install and service
    • Safe, leak-free operation due to no-metal design
    • Applicable to any high-purity or corrosive environment



Download

Download
Videos

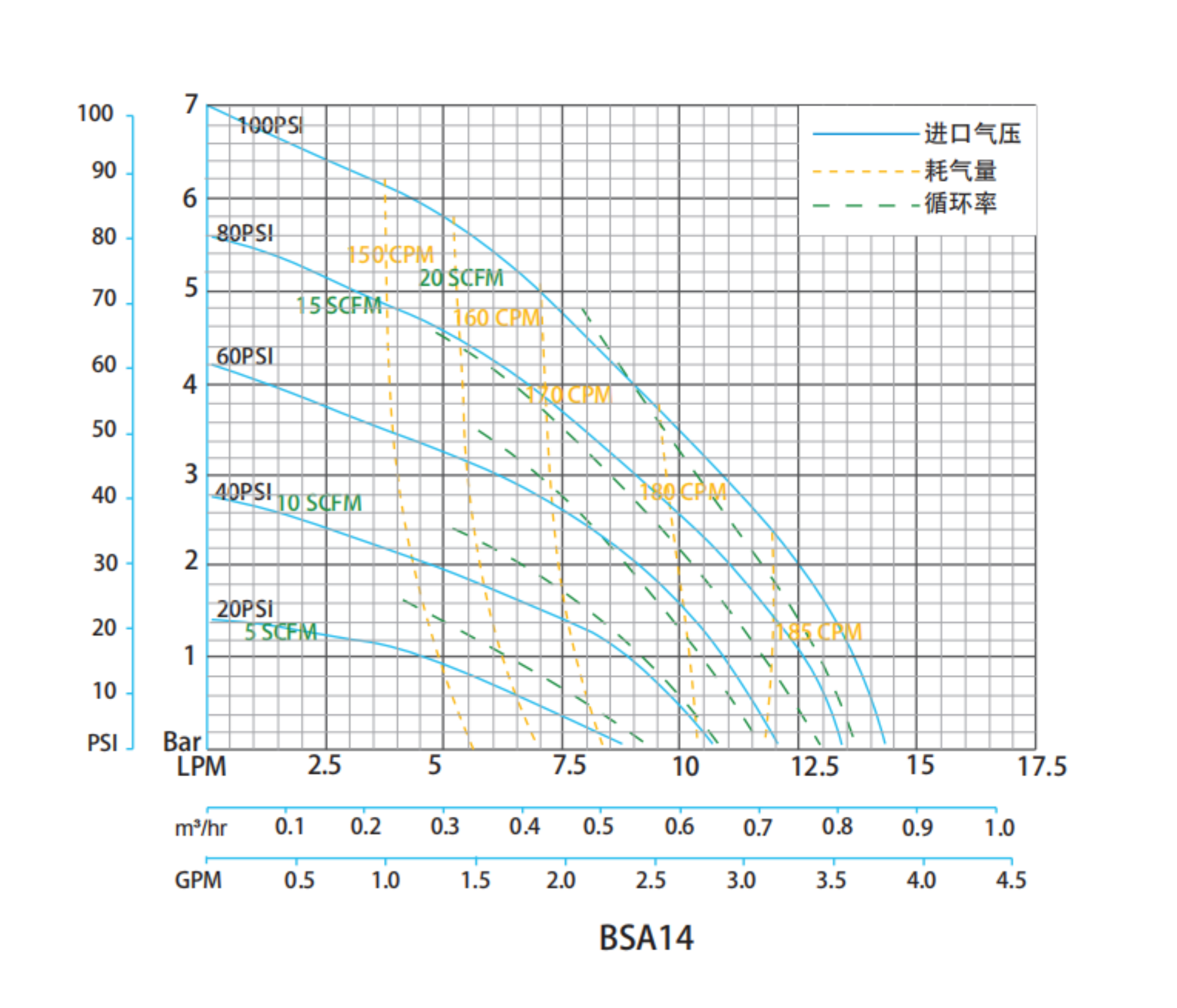

Graph

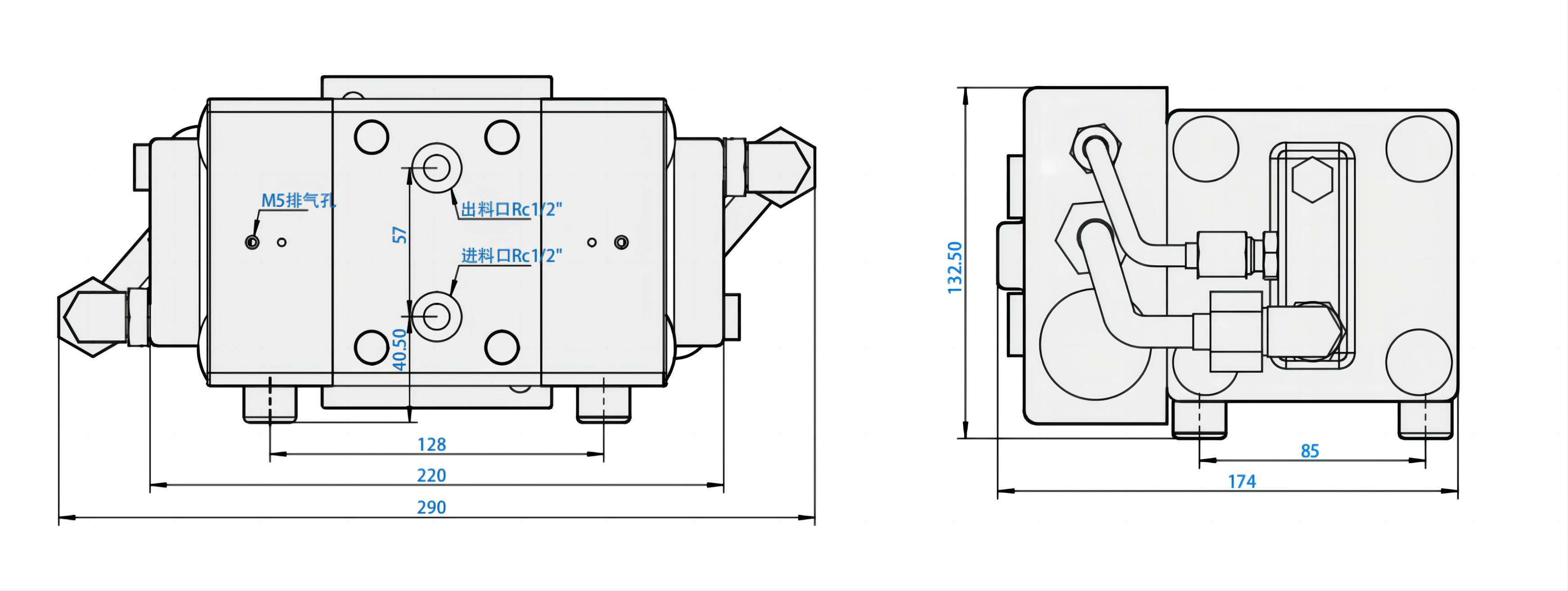

Dimensions

Accessories
