- No dynamic seal, no leakage, easy maintenance
- Working pressure up to 30MPa, measuring accuracy up to 1%
- The metering accuracy surpasses that of a mechanical diaphragm pump, and the sealing performance is superior to that of a plunger pump
- Flow control is achieved by adjusting the stroke length and using a frequency converter for speed control, enabling remote automatic control
- The mediums usage temperature should not exceed 100℃ or fall below -20℃, as it could affect the service life of the diaphragm
- The pump features a hydraulically driven diaphragm, which can last for more than 8,000 hours
- When handling special media, a double diaphragm with a rupture alarm device can be utilized
- The pump can be equipped with a digital controller to achieve digitization and facilitate both local and remote control
Characteristic
Product features

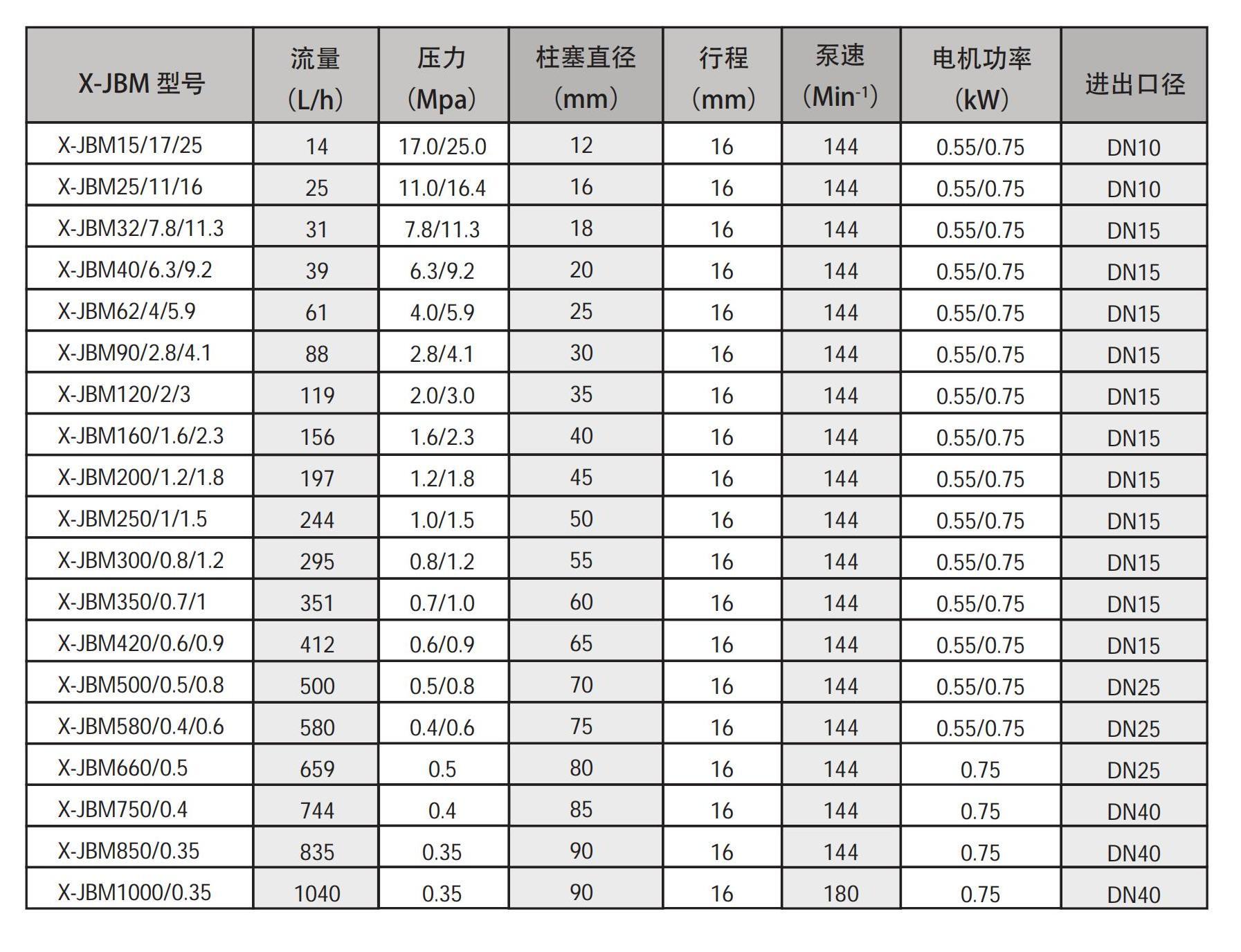

Technical Parameters

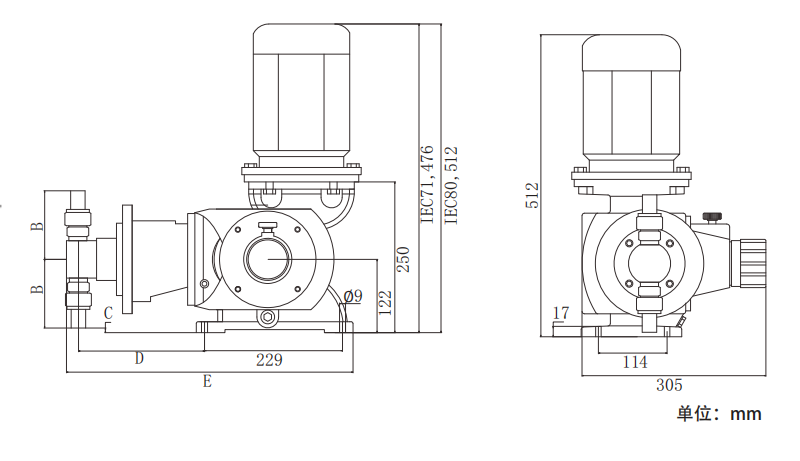

Dimensions
Accessories
