PS Series Plastic Pump
PS50
| AIR INLET | MAX FLOW RATE |
| 3/4"BSPT | 511lpm(135gpm) |
| LIQUID INLET | MAX PRESSURE |
| 51mm(2")FLANGE | 6.9bar(100psi) |
| LIQUID DISCHARGE | MAX DIAMETER SOLIDS |
| 51mm(2")FLANGE | 9mm(0.354") |
| CONNECTION TYPE | DISPLACEMENT PER STROKE |
| ANSI DIN(Flanged) | 1.63L(0.43gal)*1 cycle=2 strokes |
| MAX SUCTION LIFT CAPABILITY | MATERIAL |
| 5m(16')Dry,9.2m(30')Wet | PP/PVDF/PPH |
| MAX OPERATING TEMPERATURE | WEIGHT |
| PP(80℃)PVDF(95℃) | 41KG（PP)/56KG(PVDF) |
Characteristic
Conveying solid fluids Conveying organic solvents
-
Unbalanced valve core design, non-stop pumping, no dead spots, anti-icing and quick exhaust
A variety of flow options, up to 988 lpm
Transport of large solid particles up to 12mm
Self-priming height up to 9m
-
The angle of the inlet and outlet is adjusted by 90° to adapt to various connection methods
Bolt structure, enhanced sealing and reliability, easy to assemble and disassemble
Portable and capable of diving applications

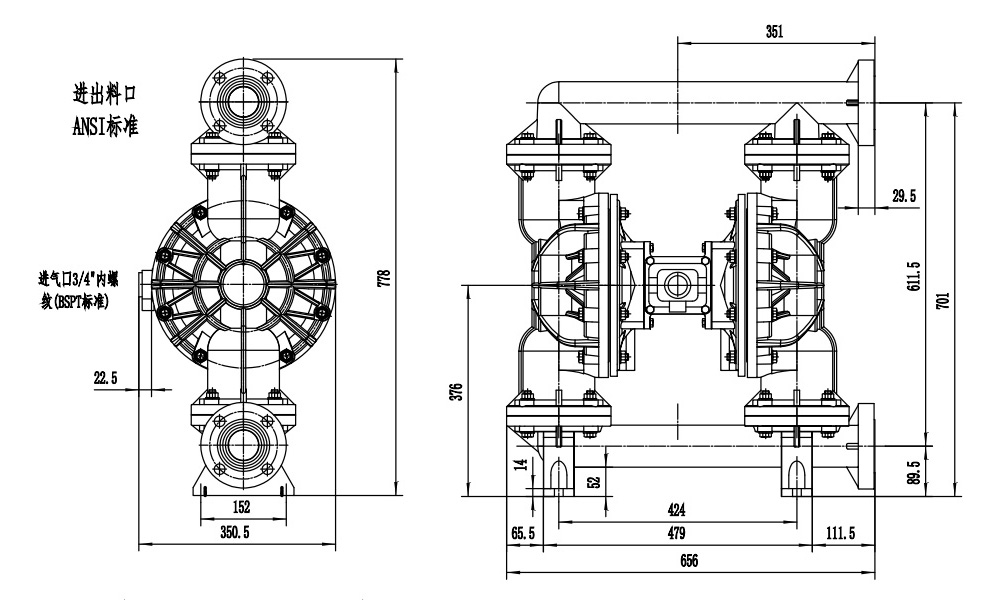

Dimensions
Material
| MATERIALS | PART |
| Material of wetted parts | PP polypropylene,PVDF polyvinylidene fluoride, PPH modified polypropylene, conductive PP polypropylene, conductive PVDF polyvinylidene fluoride |
| Material of non-wetted parts | Aluminum alloy(electrophoresis) |
| Air valve | Aluminum alloy(electrophoresis) |
| MATERIALS | PART |
| Santoprene | -40°C to 107°C (-40°F to 225°F) |
| Polytetrafluoroethylene (PTFE) | 4°C to 104°C (40°F to 220°F) |
| Fluorine rubber (FKM) | -40°C to 177°C (-40°F to 350°F) |
Accessories
