PS Series Plastic Pump
PS25
| AIR INLET | MAX FLOW RATE |
| 1/2"BSPT | 158lpm(42gpm) |
| LIQUID INLET | MAX PRESSURE |
| 25mm（1"）FLANGE | 6.9bar(100psi) |
| LIQUID DISCHARGE | MAX DIAMETER SOLIDS |
| 25mm（1"）FLANGE | 6mm(0.25") |
| CONNECTION TYPE | DISPLACEMENT PER STROKE |
| ANSI DIN(Flanged) | 0.42L(0.11gal) *1 cycle=2 strokes |
| MAX SUCTION LIFT CAPABILITY | MATERIAL |
| 3.5m(12')Dry,9.2m(30')Wet | PP/PVDF/PPH |
| MAX OPERATING TEMPERATURE | WEIGHT |
| PP(80℃)PVDF(95℃) | 12KG（PP)/16KG(PVDF) |
Characteristic
Conveying solid fluids Conveying organic solvents
-
Unbalanced valve core design, non-stop pumping, no dead spots, anti-icing and quick exhaust
A variety of flow options, up to 988 lpm
Transport of large solid particles up to 12mm
Self-priming height up to 9m
-
The angle of the inlet and outlet is adjusted by 90° to adapt to various connection methods
Bolt structure, enhanced sealing and reliability, easy to assemble and disassemble
Portable and capable of diving applications

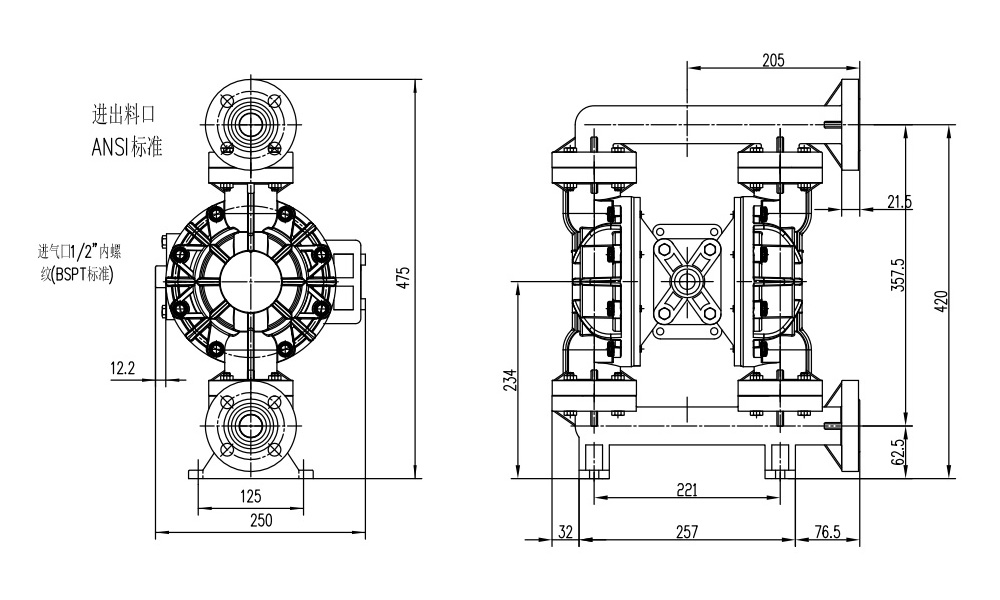

Dimensions
Material
| PART | MATERIALS |
| Material of wetted parts | PP polypropylene,PVDF polyvinylidene fluoride, PPH modified polypropylene, conductive PP polypropylene, conductive PVDF polyvinylidene fluoride |
| Material of non-wetted parts | Aluminum alloy(electrophoresis) |
| Air valve | Aluminum alloy(electrophoresis) |
| PART | MATERIALS |
| Santoprene | -40°C to 107°C (-40°F to 225°F) |
| Polytetrafluoroethylene (PTFE) | 4°C to 104°C (40°F to 220°F) |
| Fluorine rubber (FKM) | -40°C to 177°C (-40°F to 350°F) |
Accessories
