PS Series Plastic Pump

PS15

AIR INLET MAX FLOW RATE
 1/4"BSPT  52lpm(13.5gpm)
LIQUID INLET MAX PRESSURE
 13mm(1/2")BSPT  6.9bar(100psi)
LIQUID DISCHARGE MAX DIAMETER SOLIDS
 13mm(1/2")BSPT  3mm(0.118")
CONNECTION TYPE DISPLACEMENT PER STROKE
 BSPT(Threaded)  0.15L(0.04gal)
 ANSI DIN(Flanged)  *1 cycle=2 strokes
MAX SUCTION LIFT CAPABILITY MATERIAL
 3.5m(12')Dry,9.2m(30')Wet  PP/PVDF/PPH
MAX OPERATING TEMPERATURE WEIGHT
 PP(80℃)PVDF(95℃)  5.5KG(PP)/7.2KG(PVDF)

Characteristic

Conveying solid fluids Conveying organic solvents

  • Unbalanced valve core design, non-stop pumping, no dead spots, anti-icing and quick exhaust
  • A variety of flow options, up to 988 lpm
  • Transport of large solid particles up to 12mm
  • Self-priming height up to 9m
  • The angle of the inlet and outlet is adjusted by 90° to adapt to various connection methods
  • Bolt structure, enhanced sealing and reliability, easy to assemble and disassemble
  • Portable and capable of diving applications

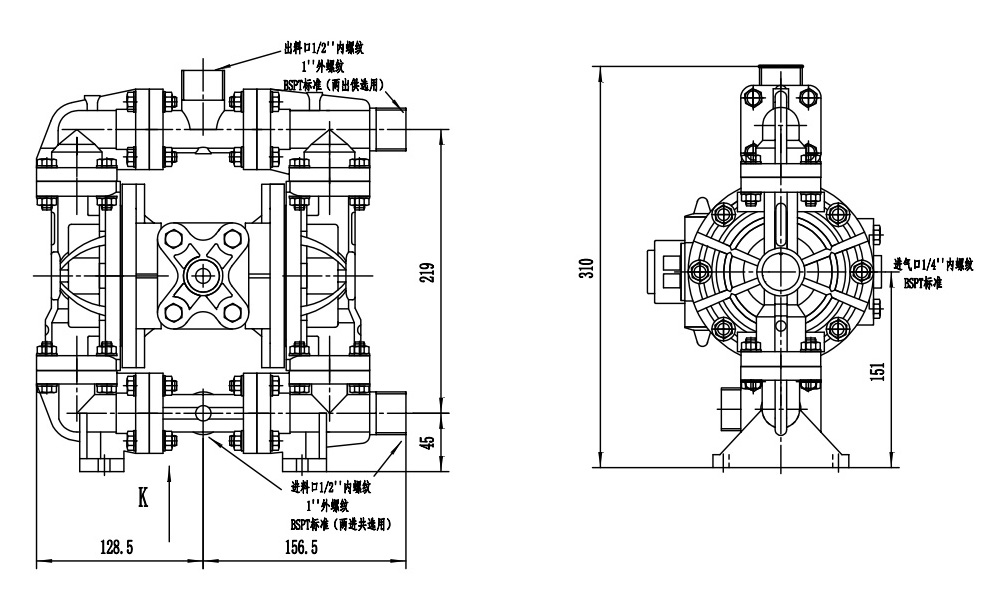

Dimensions

Material

MATERIALS PART
Material of wetted parts PP polypropylene,PVDF polyvinylidene fluoride, PPH modified polypropylene, conductive PP polypropylene, conductive PVDF polyvinylidene fluoride
Material of non-wetted parts Aluminum alloy(electrophoresis)
Air valve Aluminum alloy(electrophoresis)
MATERIALS PART
Santoprene -40°C to 107°C (-40°F to 225°F)
Polytetrafluoroethylene (PTFE) 4°C to 104°C (40°F to 220°F)
Fluorine rubber (FKM) -40°C to 177°C (-40°F to 350°F)
