| AIR INLET | 3/4" BSPT |
| MAX FLOW RATE | 511 lpm (135 gpm) |
| LIQUID INLET | 51 mm (2") |
| MAX PRESSURE | 8.6 bar (125 psi) |
| LIQUID DISCHARGE | 51 mm (2") |
| MAX DIAMETER SOLIDS | 9 mm (3/8") |
| CONNECTION TYPE | BSPT(Threaded) |
| ANSI DIN(Flanged) | |
| DISPLACEMENT PER STROKE | 1.63 L (0.43 gal) |
| *1 cycle = 2 strokes | |
| MAX SUCTION LIFT CAPABILITY | 6m(20')Dry, 9.2m(30')Wet |
| MATERIAL | AL/316L/CI |
| MAX OPERATING TEMPERATURE | 135 °C (275 °F) |
| WEIGHT | 43KG(AL)/73KG(CI/316L) |
SK50
Focusing on fluid transportation and providing solutions for users in various industries around the world.
Products Category / Keywords
Share to
Characteristic
Conveying solid fluids Conveying organic solvents
- Unbalanced valve core design, non-stop pumping, no dead spots, anti-icing and quick exhaust
- A variety of flow options, up to 988 lpm
- Transport of large solid particles up to 12mm
- Self-priming height up to 9m
- The angle of the inlet and outlet is adjusted by 90° to adapt to various connection methods
- Bolt structure, enhanced sealing and reliability, easy to assemble and disassemble
- Portable and capable of diving applications
Dimensions
Material
| PART | MATERIALS |
|---|---|
| Material of wetted parts | Aluminum alloy, cast iron, 316L stainless steel |
| Material of non-wetted parts | Center body (aluminum alloy(electrophoresis),anodized aluminum, PP polypropylene, 316L stainless steel) |
| Air valve | Aluminum alloy(electrophoresis),anodized aluminum, PP polypropylene, 316L stainless steel |
| PART | MATERIALS |
|---|---|
| Santoprene | -40°C to 107°C (-40°F to 225°F) |
| Neoprene | -18°C to 93°C (0°F to 200°F) |
| Polytetrafluoroethylene (PTFE) | 4°C to 104°C (40°F to 220°F) |
| Nitrile rubber (Buna-N) | -12°C to 82°C (10°F to 180°F) |
| EPDM | -51°C to 138°C (-60°F to 280°F) |
| Fluorine rubber (FKM) | -40°C to 177°C (-40°F to 350°F) |

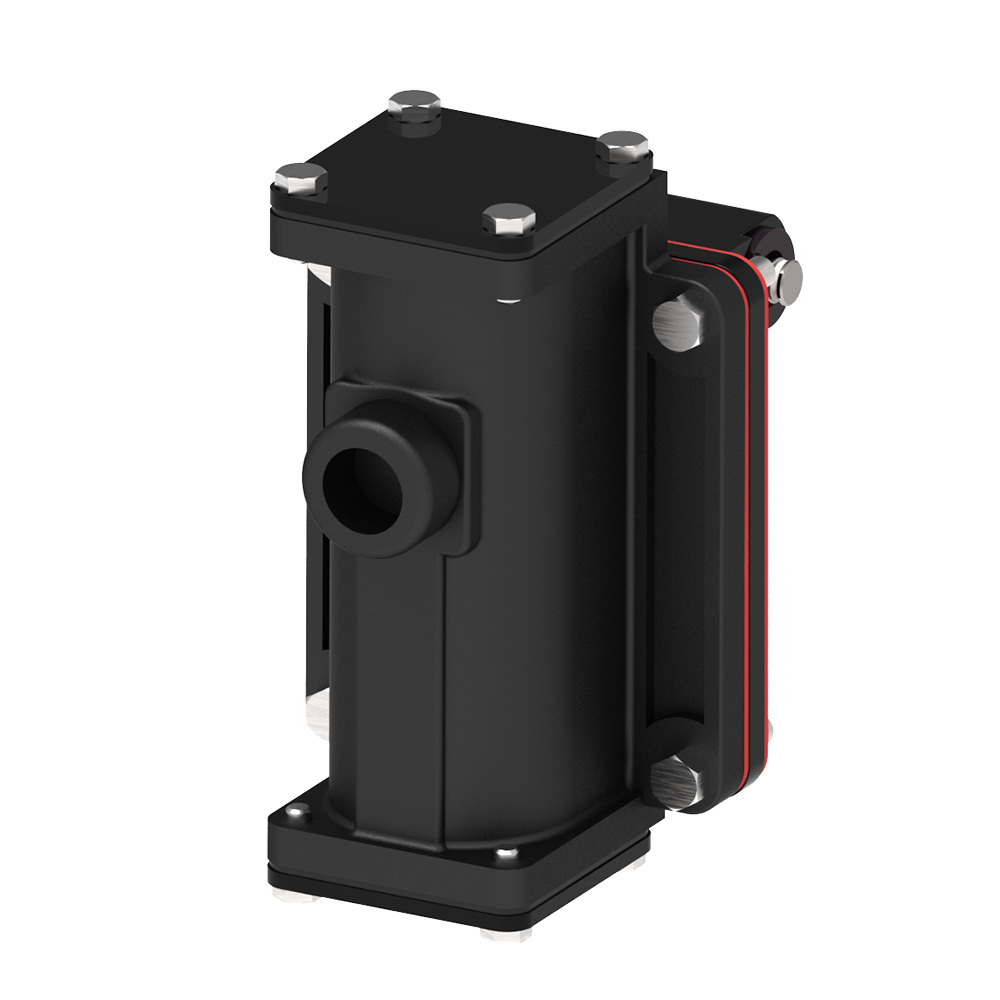

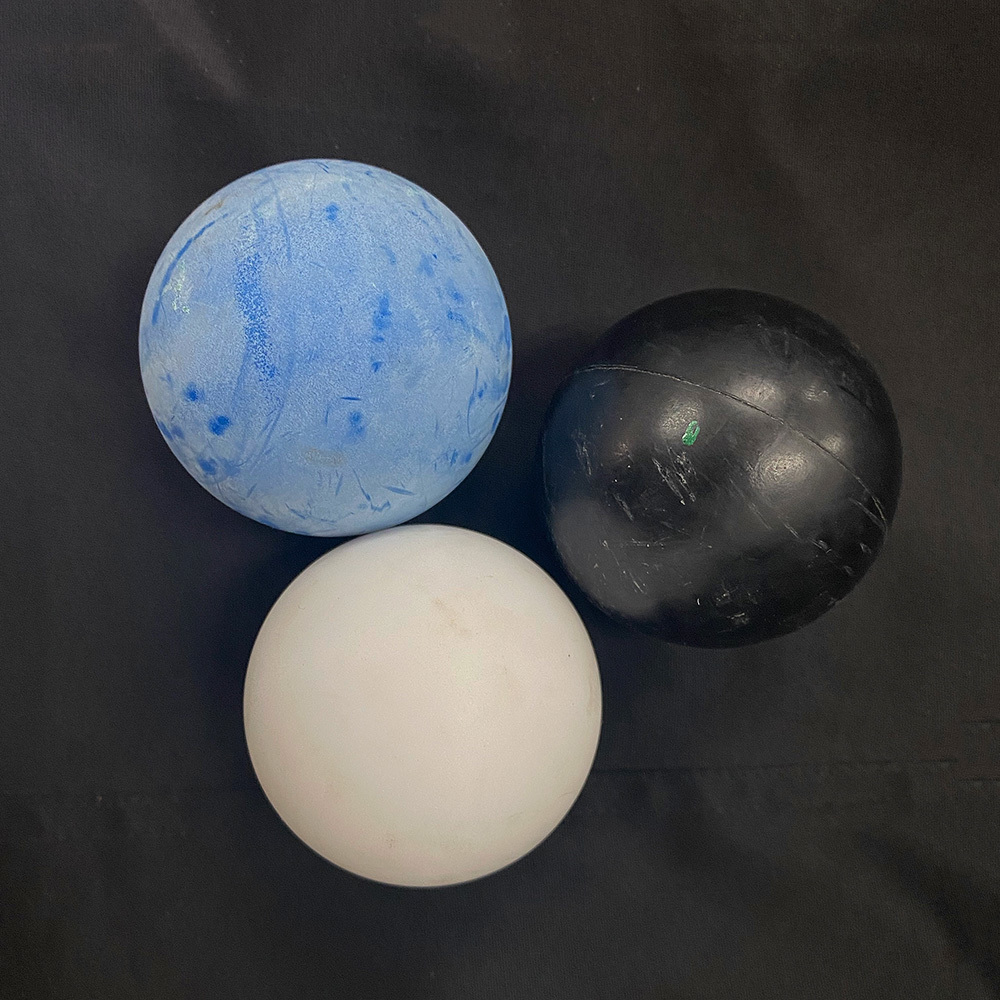

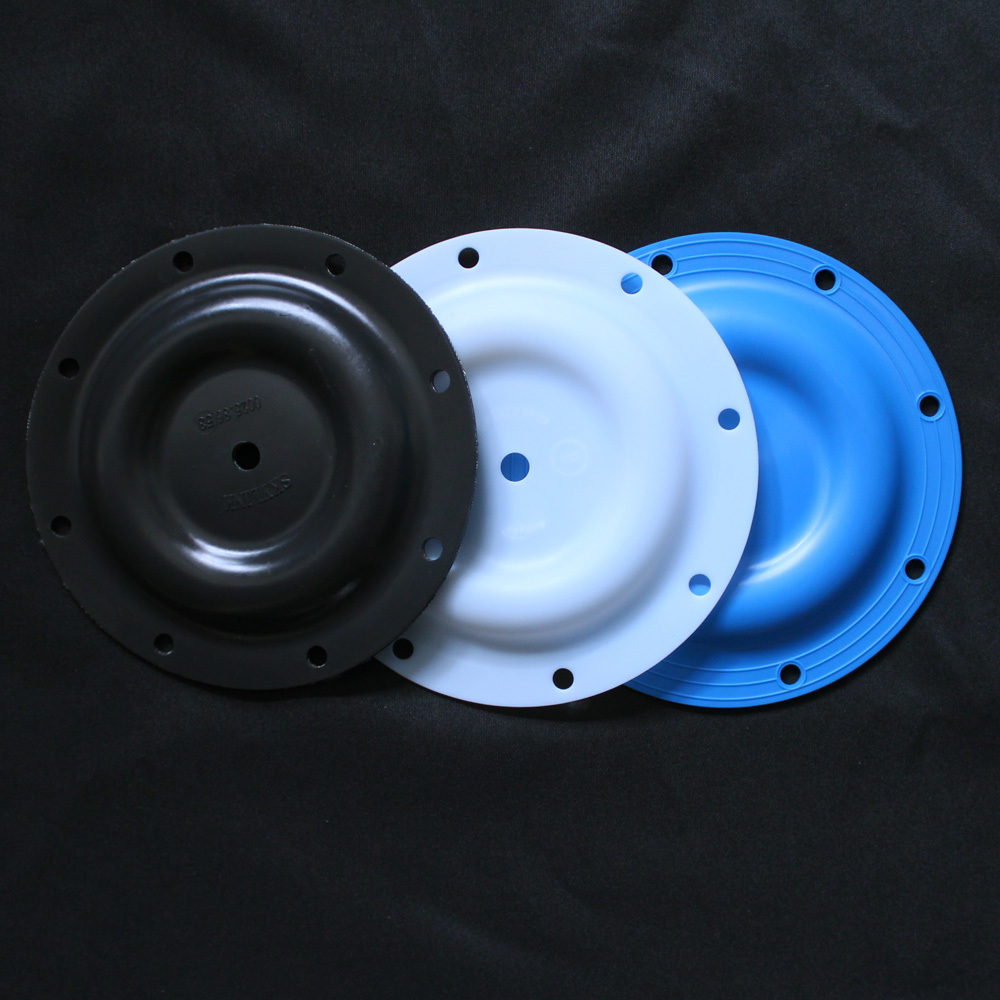

Accessories
